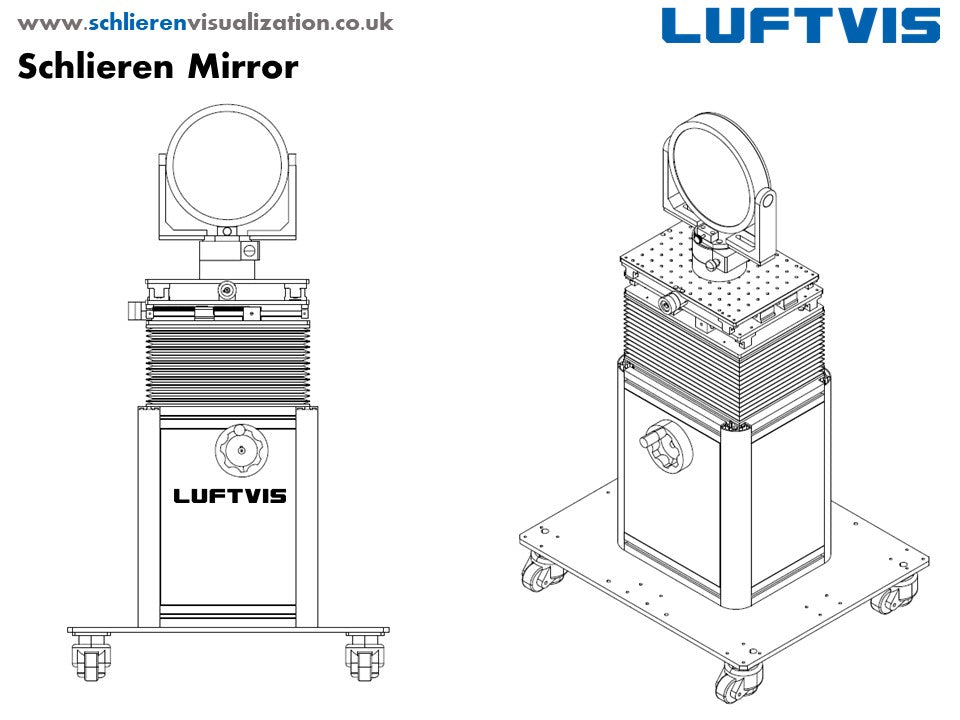

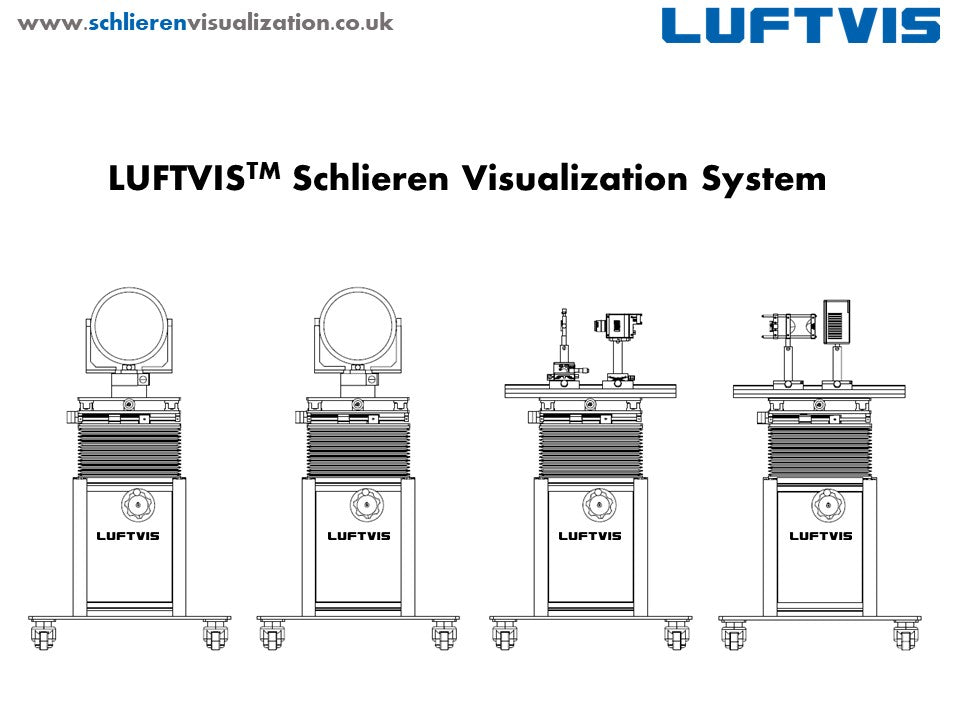

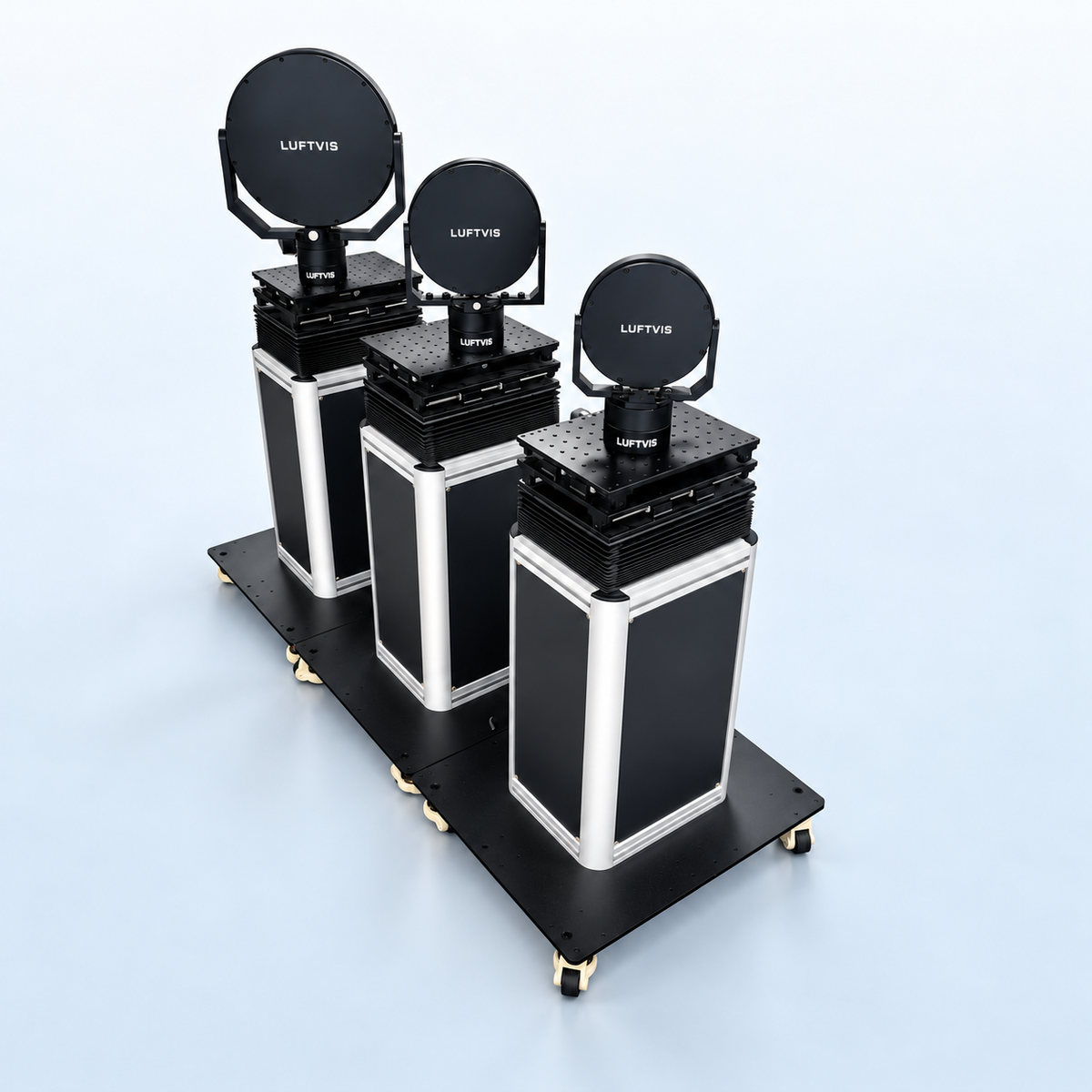

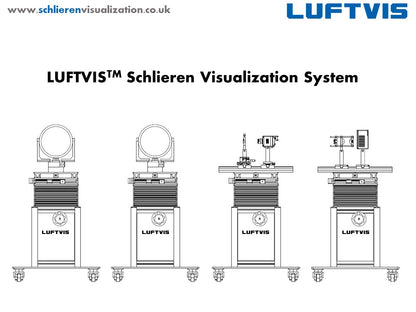

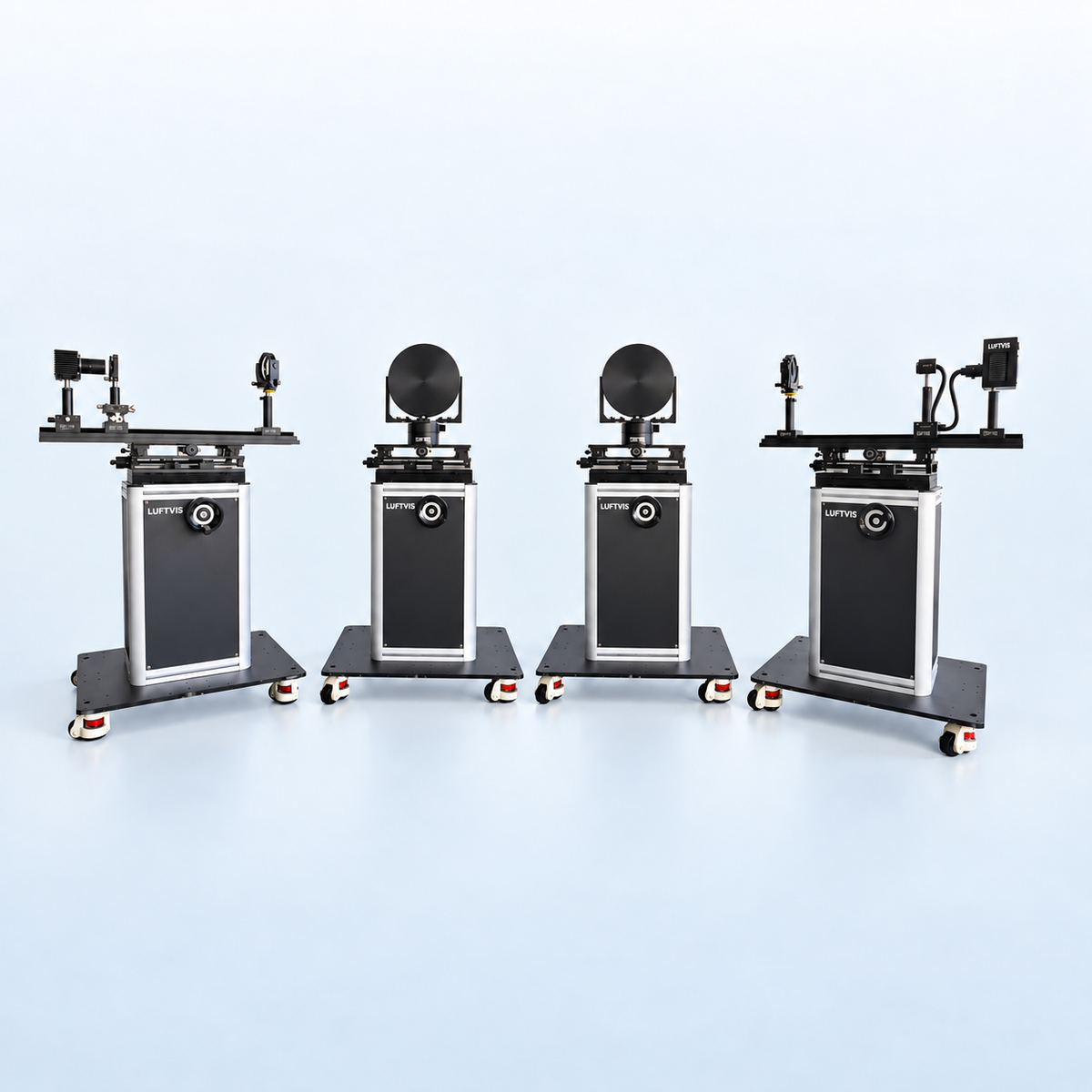

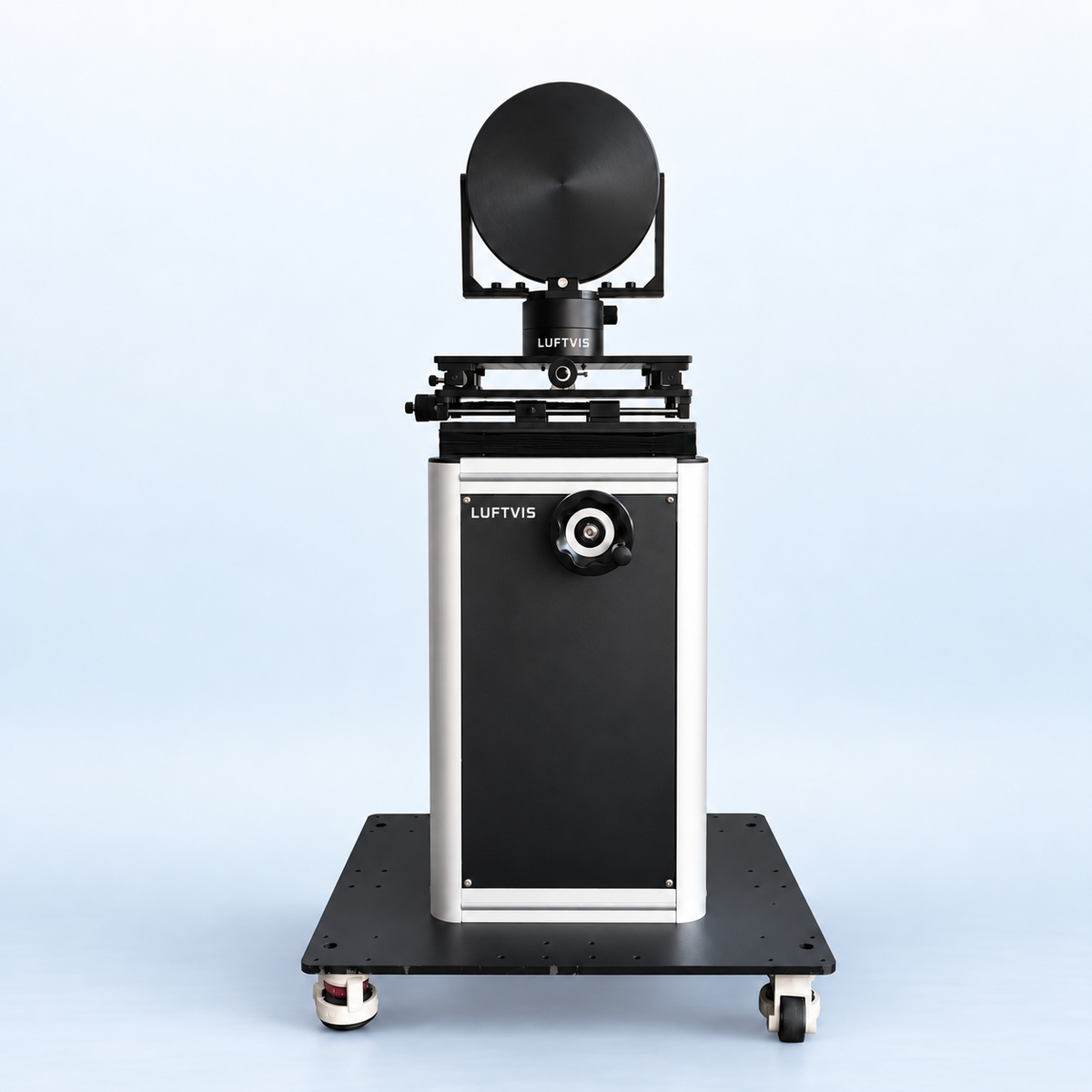

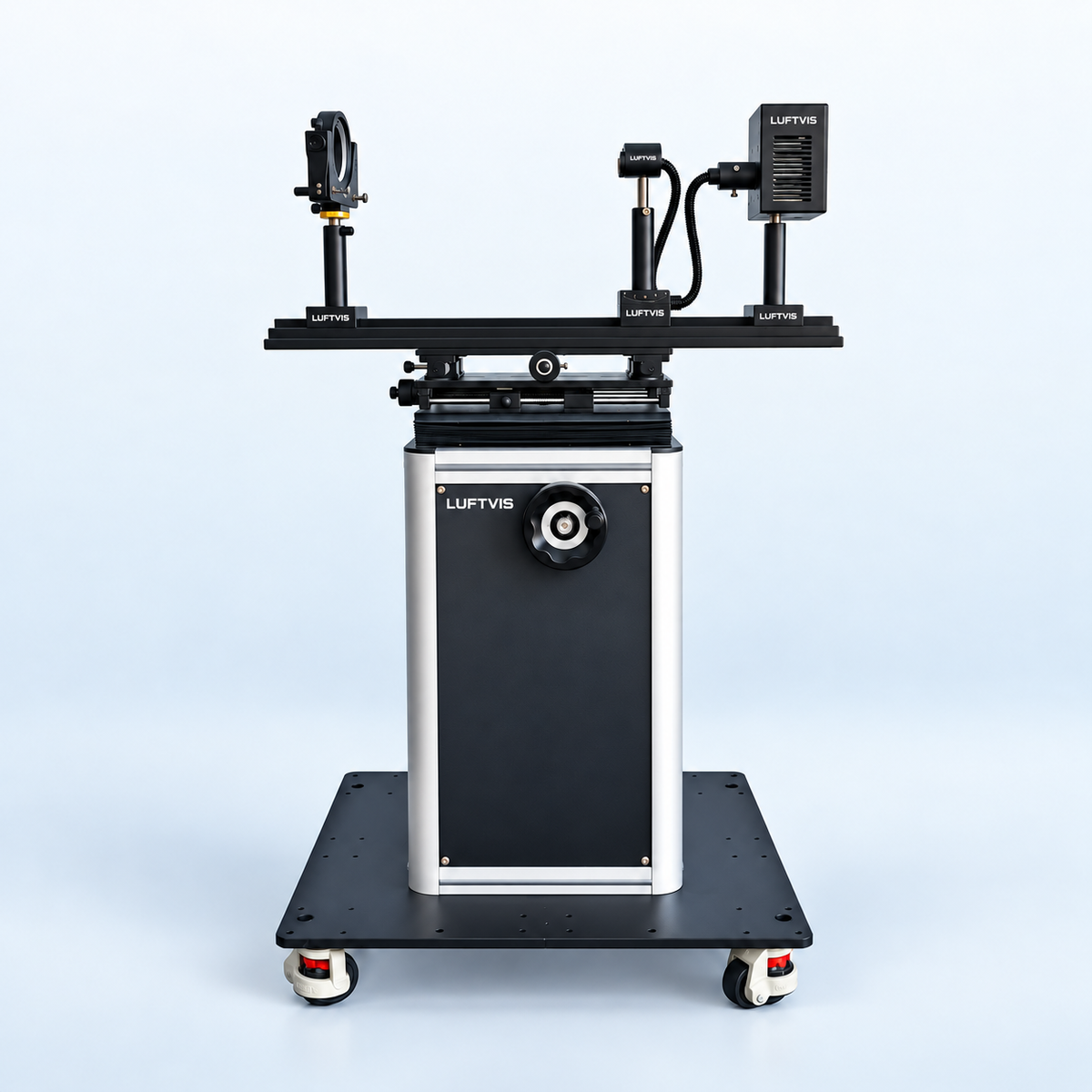

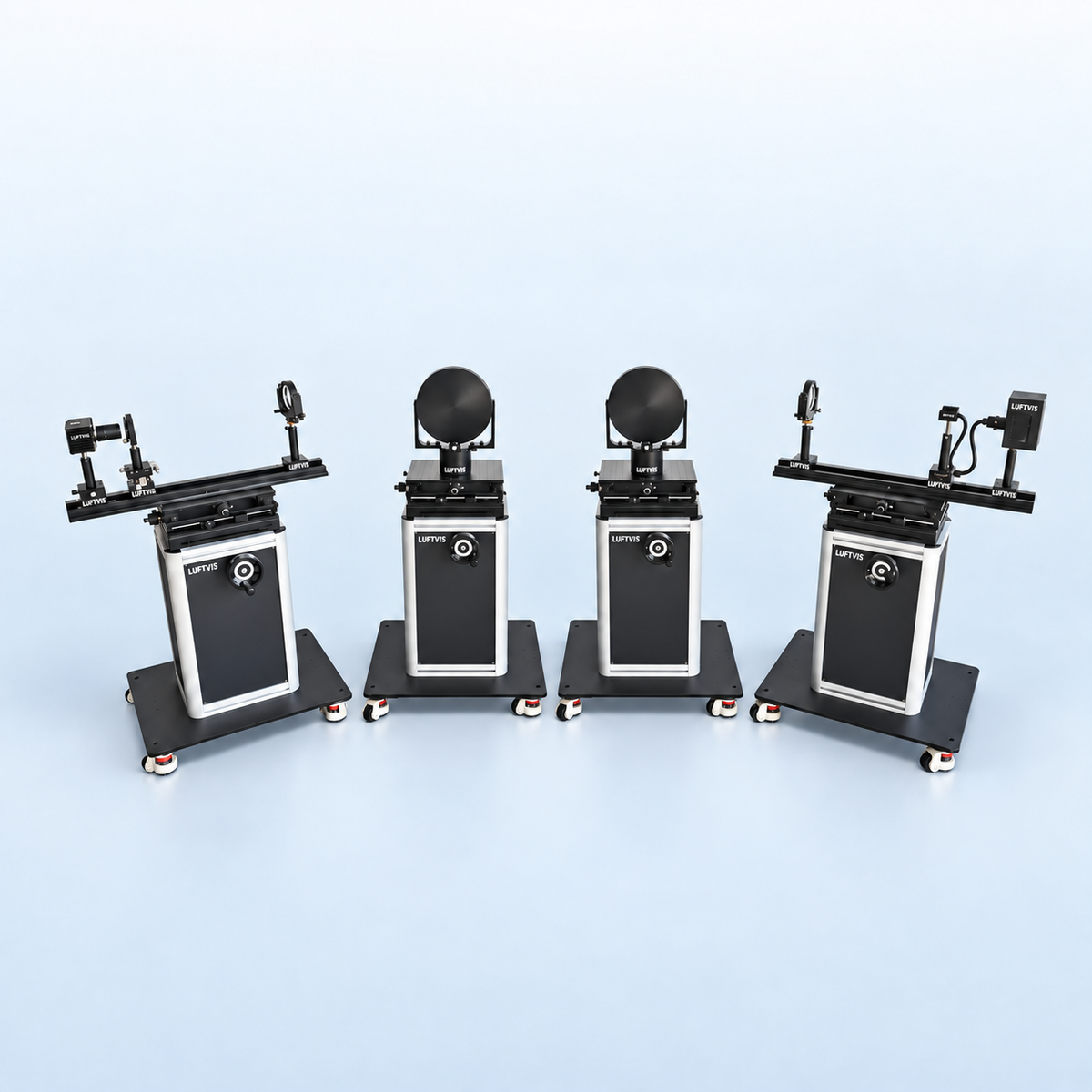

We typically supply the 4-platform system for mirrors with focal length larger than 1 meter, we have the following standard mirror sizes:

Luftvis-160:  d=160mm, f=1300mm

Luftvis-200:  d=200mm, f=2000mm

Luftvis-300:  d=300mm, f=3000mm

We can manufacture schlieren mirrors up to d=5000mm.

📞 CONTACT FOR PRICE

This is a custom-configured system. Please contact us for detailed specifications, pricing, and delivery information tailored to your specific requirements.

Get in touch with our technical team to discuss your schlieren visualization needs and receive a personalized quote.
